Exchange Server 2007 - Create Mailbox

How to Create an Exchange 2007 Mailbox

This page explains the new way of creating mailboxes in Exchange 2007.  There really is a knack to enabling users' mailboxes.  If you transitioning from Exchange 2003, the the fastest way to learn is to open your mind to new ways of performing old tasks.

Topics for Creating Mailboxes in Exchange 2007

• Forget Exchange 2003
• Create Mailbox - Recipient Configuration
• Create Mailbox - Wizard
• Troubleshooting mistakes with mailboxes
• Summary - Create Mailboxes in Exchange 2007

 ♠

Forget Exchange 2003

For once, any knowledge of previous Exchange versions is a positive disadvantage.  My advice is to un-learn how Exchange 2000 and 2003 rely on Active Directory to create mailboxes.  Instead, in Exchange 2007, fixate on the Exchange Management Console (formerly the Exchange System Manager).  Trust me, it may look as thought ADUC (Active Directory Users and Computers) functions much as before, but this is deceptive and any mailboxes created in Active Directory will only lead to disappointment.

By all means create a new user object with ADUC, but do not add mailboxes with this interface, even if prompted by the wizard.  Instead, switch to the Exchange Management Console and learn the technique to enable mailboxes for existing users.

Create Mailbox - Recipient Configuration

To achieve the goal of generating a mail-enabled user, first create a user without mailbox, then switch to the Exchange Management Console.  Don't worry if you make a mistake and and mailbox with ADUC I will explain later how to correct this error.

From the Exchange Management Console, expand the Recipient Configuration container, then right click on Mailbox.  You will see on the shortcut menu, 'Enable Mailbox...' which encourages you to select a user and then connect them to their new mailbox.

Create Mailbox - Wizard

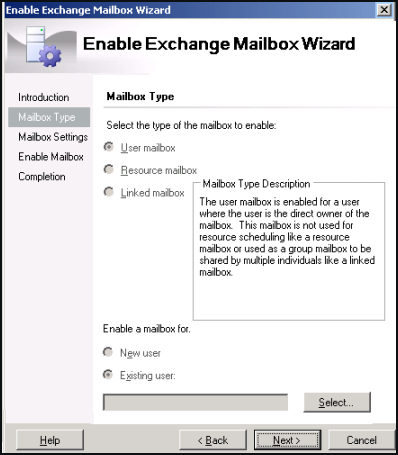

The Exchange Mailbox wizard points the way to the users via the 'Select...' button.  Once you choose the user, click 'Next..',  followed by 'Finish'.  When you return to the Recipient Container you should see the new user's Display Name and Alias.  Throughout the configuration, pay particular attention to the Primary SMTP Address; if you follow my method you get a proper SMTP address.  However, should you try to create a mailbox with ADUC, then the trap is that the Primary Email address is blank; consequently the account cannot send and receive email.

If you have installed the Client Access Role on your Exchange 2007 server, then Outlook Web Access is a convenient way to test the new account that you created.  Type the following command in the browser:

http:\\ server \owa.  (This is a change from previous versions: http: \\ server \exchange).  You can now logon to the mailbox by providing the Alias and Password.

Guy Recommends: SolarWinds Engineer's Toolset v10

The Engineer's Toolset v10 provides a comprehensive console of utilities for troubleshooting computer problems.  Guy says it helps me monitor what's occurring on the network, and the tools teach me more about how the system itself operates.

There are so many good gadgets, it's like having free rein of a sweetshop. Thankfully the utilities are displayed logically: monitoring, discovery, diagnostic, and Cisco tools.  Download your copy of the Engineer's Toolset v 10

Troubleshooting mistakes with mailboxes.

If you try and create a mailbox with ADUC, on the surface everything seems in order.  Unfortunately, if you try and send an email then you get error messages.  Here below is a diagram illustrating the problem, the Psycho user has no Primary SMTP Address, this is an indication of a problem.  The solution is to disable the mailbox through the Exchange System Manager, then Enable the mailbox as shown in the Create a Mailbox Wizard.  Note, deleting the mailbox does not work, you need the Disable / Enable routine.

In conclusion, the latest technique is to abandon Exchange 2003 methods, which rely on ADUC, and instead embrace the new features of the 2007's Exchange Management Console.

Exchange Server 2007 is a complex topic, do you need practical hands on training?  As an MCT trainer, I can thoroughly recommend TrainSignal.  In particular, I like the way that TrainSignal cover all learning methods, instructor lead, video and of course text material.  You can either take one module, for example Exchange 2007 or go for a combination of modules.  Learn more about Microsoft Exchange Server 2007 here

Summary - Create Mailboxes in Exchange 2007

With Exchange 2007, the past does not equal the present.  What I mean is that Exchange 2007 has a completely new method of creating mailboxes.  Make it your reflex to launch the Exchange Management Console when you need to give a user a mailbox.  Active Directory Users and Computer is still used for creating users, but not their mailboxes.
